• Indoor and outdoor models
• Outdoor model includes contractor friendly door lock
• Full-functioning controller with touchscreen
• Wi-Fi enabled for simple and fast connection to the internet
• 6, 12 and 24 fixed station controllers
• Dedicated master valve/pump start
• Large terminal strips and wiring compartment
• Built-in milliamp sensor across the full range of controllers
• Warranty period: 2 years

ADVANCED FEATURES

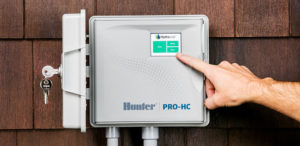

TOUCHSCREEN INTERFACE (PRO-HC)
The Pro-HC controller has a full graphical touchscreen interface, which makes programming with or without Wi-Fi connectivity and manual starting from the controller a breeze.

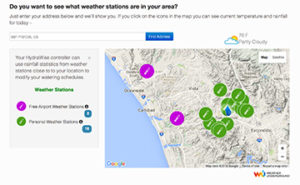

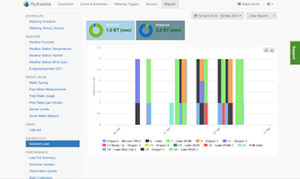

PREDICTIVE WATERING ADJUSTMENTS
Daily schedule adjustments, based on local weather data, monitor past, current and forecasted temperature, rainfall, humidity, and wind speed. This allows for adjustments of watering times and schedules to balance water savings with water efficiency for plants.

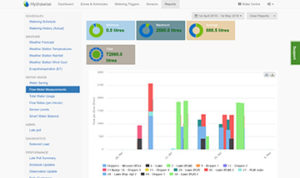

FLOW METER DETECTION AND ALERTS
Monitor your piping and sprinklers with an optional flow meter. Receive automatic alerts when a pipe is broken to prevent property damage.

WIRING DETECTION AND ALERTS (PRO-HC)
Pro-HC controllers continuously monitor the electrical current flowing to your solenoid valves. If the current is too high or too low, Hydrawise will alert you and tell you which valve is not working properly. This allows you to correct a failed valve before damage is done to plant materials.

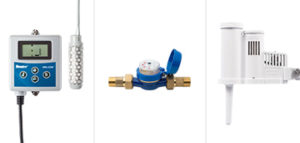

ADVANCED SENSOR PORTS
Two general purpose sensor ports can be used for many different functions. Sensor port works with the Hunter HC flow meters, the Hunter Clik sensor range and standard rain and soil sensors to stop irrigation. The sensor ports can also start an irrigation cycle. This allow you to create custom starts based on sensor readings.

HYDRAWISE EPA WATERSENSE APPROVED SMART WATERING
All Hydrawise compatible controllers connected to Hydrawise web-based software are EPA WaterSense approved Smart Watering
Controller. Hydrawise Predictive Watering™ allows the controller to adjust schedules based on forecasted temperature, rainfall probability, wind and humidity to provide the maximum water savings you come to expect from a Hunter smart controller.

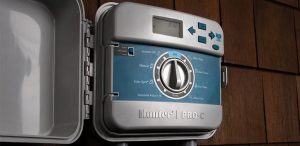

• Number of stations: Pro-C 4 -16, PCC 6 & 12
• Type: Pro-C: Modular, PCC: Fixed
• Enclosures: indoor and outdoor plastic
• Independent irrigation programs: 3
• Independent lighting programs: 3
• Start times per program: 4
• Max. station run time: 6 hours
• Solar Sync dial position: now available with built-in Solar Sync programming for increased installation efficiency
• Solar Sync delay feature: allows adjustments to be postponed for up to 99 days
• Cycle and Soak feature built in: reduces runoff
• Lighting programs built in: allows the ability to add landscape lighting control
• Added knockouts offer additional flexibility
• Programmable rain delay: prevents watering for an extended period as needed
• Non-volatile memory: keeps programs indefinitely— without battery backup
• Rain sensor bypass: allows the controller to ignore sensor devices when needed
• One touch manual start and advance: allows user to start or test any station
• Warranty period: 2 years

ADVANCED FEATURES

WATERSENSE® SMART WATERING CONTROLLER BY ADDING SOLAR SYNC
By adding a Solar Sync™ to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water saving features and has been approved by the EPA as a WaterSense Smart Watering Controller. Click here to learn more about Smart Controllers

EASY RETRIEVE™ MEMORY
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

AUTOMATIC SHORT CIRCUIT PROTECTION
Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.

QUICK CHECK™
The QuickCheck feature makes field wiring issues easy to assess with the push of a button. QuickCheck displays an ERR message when a field wiring short is detected on a particular station number.

SEASONAL ADJUSTMENT: GLOBAL OR AUTOMATIC UPDATES WITH SOLAR SYNC
This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program.  This model offers two different ways to use Seasonal Adjustment to reduce water usage: Global and Daily.

Global: The Global option provides a Seasonal Adjustment percentage to all station Run Times on all of the controller’s Programs.

Daily: With the addition of a Solar Sync ET Sensor, the controller has the ability to automatically implement daily adjustments based on measured local weather.

DELAY BETWEEN STATIONS
Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.

SENSOR PROGRAMMABILITY
The ability to specify which program or stations will be shut down in response to a specific sensor alarm. This allows stations or programs unaffected by the sensor to continue automatic operations.

NON-WATER DAYS
Day(s) of the week can be programmed OFF in advance, so that irrigation does not occur regardless of program interval schedules. For example, if the gardener mows the lawn on Saturday, the Non-Water Days feature allows Saturday to be programmed OFF, so that watering will not occur.

• Number of stations: 6 to 42 (48 stations with DUAL decoders)
• Type: Modular
• Enclosure: Outdoor, plastic or metal
• Independent programs: 4
• Start times per program: 8 (A, B, C); 16 (D)
• Max. station run time: 12 hrs
• Warranty period: 5 years

ADVANCED FEATURES

WATERSENSE® SMART WATERING CONTROLLER BY ADDING SOLAR SYNC
By adding a Solar Sync™ to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water saving features and has been approved by the EPA as a WaterSense Smart Watering Controller. Click here to learn more about Smart Controllers

REAL TIME FLOW MONITORING
This feature permits connection of a flow meter to recognize high or low flow conditions and react automatically to alarms. The controller learns typical flows for each zone of irrigation and then monitors performance during automatic irrigation. When incorrect flows are detected, the controller can identify the faulty station and shut it down. Used with a normally-closed Master Valve. Alarm parameters are user-programmable. Flow totals are also recorded in controller memory to report system water usage.

EASY RETRIEVE™ MEMORY
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

ONE TOUCH MANUAL START AND ADVANCE
Allows the user to manually start/test any station by simply pressing and holding the right arrow button, and then adding a run time to the appropriate station.

PROGRAMMABLE RAIN DELAY
The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather, but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.

QUICK CHECK™
The QuickCheck feature makes field wiring issues easy to assess with the push of a button. QuickCheck displays an ERR message when a field wiring short is detected on a particular station number.

NON-VOLATILE MEMORY

This feature offers protection against unreliable power, retaining current time, date, and program data.

AUTOMATIC SHORT CIRCUIT PROTECTION

Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.

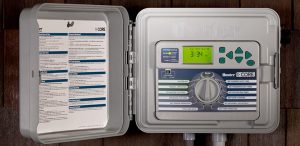

SEASONAL ADJUSTMENT: GLOBAL, MONTHLY AND SOLAR SYNC FOR I-CORE

This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjust to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program. The I-Core offers three different ways to use Seasonal Adjustment to reduce water usage:

Global: Provides a seasonal adjustment value to all selected programs.

Monthly: Allows users to program a seasonal adjustment value for each month of the year. This is exclusively available on the I-Core, and works by automatically changing programmed seasonal adjustment value on the first day of every month.

Solar Sync: When connected to the I-Core, the Solar Sync ET sensor implements an automatic daily adjustment based on measured local weather.

DELAY BETWEEN STATIONS FOR I-CORE AND ACC

Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements. In ACC and I-Core, Delay Between Stations may be set by individual program.

SENSOR PROGRAMMABILITY FOR I-CORE

Sensor Programmability feature allows the user to specify which stations should shut down in response to a sensor alarm, allowing specified stations or programs to run uninterrupted in the event of a sensor alarm.

CYCLE AND SOAK

This water-saving feature allows the operator to specify a maximum cycle time for each single station in hours, minutes, or seconds, followed by a minimum soak time, to prevent runoff from slopes or saturated soil. The operator can enter any run time, and the controller will automatically divide it into cycles to allow the water to be absorbed during the soak periods. The feature is adjustable for each individual station for unique soil and site conditions.

NO WATER WINDOW

User-specified periods of time during which the controller will not allow automatic irrigation. No Water Window can be used to comply with local watering restrictions or to prevent conflicts with pedestrian traffic. This setting does not affect manual watering options for local maintenance.

NON-WATER DAYS

Day(s) of the week can be programmed OFF in advance, so that irrigation does not occur regardless of program interval schedules. For example, if the gardener mows the lawn on Saturday, the Non-Water Days feature allows Saturday to be programmed OFF, so that watering will not occur.

SOLAR SYNC™ DELAY

Solar Sync Delay allows the installer to specify a number of days before automatic weather adjustment begins. This allows a period of non-adjusted irrigation for grow-in or plant establishment purposes, without requiring a return visit to the site to enable the Solar Sync water-saving feature.

MULTI-LANGUAGE PROGRAMMING

I-Core can be programmed in English, Spanish, French, Italian, German and Portuguese.

TOTAL RUN TIME CALCULATOR

Simultaneous Station Groups allow for groups of stations to run together within a program. This permits consolidation of large systems into fewer items to program and can be used to control system flow in high capacity installations.

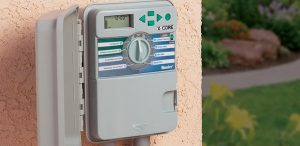

• Number of stations: 2, 4, 6, 8
• Type: Fixed
• Enclosures: Indoor and outdoor
• Independent programs: 3
• Start times per program: 4
• Max. station run time: 4 hrs
• Warranty period: 2 years

Advanced Features

WATERSENSE® SMART WATERING CONTROLLER BY ADDING SOLAR SYNC
By adding a Solar Sync™ to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water saving features and has been approved by the EPA as a WaterSense Smart Watering Controller. Click here to learn more about Smart Controllers

EASY RETRIEVE™ MEMORY
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

PROGRAMMABLE RAIN DELAY
The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather, but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.

QUICK CHECK™
The QuickCheck feature makes field wiring issues easy to assess with the push of a button. QuickCheck displays an ERR message when a field wiring short is detected on a particular station number.

NON-VOLATILE MEMORY
This feature offers protection against unreliable power, retaining current time, date, and program data.

AUTOMATIC SHORT CIRCUIT PROTECTION
Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.

SEASONAL ADJUSTMENT: GLOBAL OR AUTOMATIC UPDATES WITH SOLAR SYNC
This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program. This model offers two different ways to use Seasonal Adjustment to reduce water usage: Global and Daily.
Global: The Global option provides a Seasonal Adjustment percentage to all station Run Times on all of the controller’s Programs.
Daily: With the addition of a Solar Sync ET Sensor, the controller has the ability to automatically implement daily adjustments based on measured local weather.

DELAY BETWEEN STATIONS
Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.

SENSOR PROGRAMMABILITY
The ability to specify which program or stations will be shut down in response to a specific sensor alarm. This allows stations or programs unaffected by the sensor to continue automatic operations.

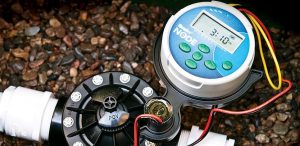

• Battery powered
• Number of stations: 1, 2, 4, 6
• Type: Fixed
• Enclosure: Outdoor
• Independent programs: 3
• Start times per program: 4
• Max. station run time: 6 hrs
• Manual Cycle
• Master Valve operation (available in 2, 4, 6 station models)
• Solar Panel Kit (SPNODE) provides maintenance-free operation
• Accepts one or two 9-volt batteries for extended battery life
• Solenoid wire length up to 100 ft. (18 AWG)
• Programmable Off
• Warranty period: 2 years

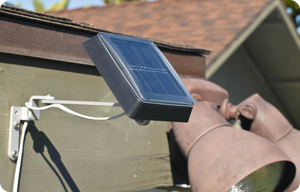

COMPATIBLE WITH SOLAR PANEL KIT
The Node’s optional Solar Panel Kit (SPNODE) eliminates the need for batteries and provides maintenance-free operation by harnessing the sun’s energy. Once connected, the Solar Panel supplies 100% of the controllers’ power, and eliminates the alkaline batteries. This “eco-innovations” alternative is more environmentally friendly and allows for maintenance-free operation of the controller.

EASY RETRIEVE™ MEMORY
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

GLOBAL SEASONAL ADJUSTMENT
This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program.

SENSOR COMPATIBILITY
Node is compatible with hard-wired Hunter Clik sensors and other micro-switch type weather sensors for enhanced efficiency.

BATTERY LIFE INDICATOR
All units include a clear display of available battery life so users can accurately schedule for replacement.

WATERPROOF BODY (WVC)
Rugged shell casing is waterproof up to a depth of 12 feet (IP68 rated).

• Number of stations: 12 to 42
• Type: Modular
• Enclosure: Outdoor
• Independent programs: 6
• Start times per program: 10
• Max. station run time: 6 hrs
• Warranty period: 5 years

WATERSENSE® SMART WATERING CONTROLLER BY ADDING SOLAR SYNC
By adding a Solar Sync™ to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water saving features and has been approved by the EPA as a WaterSense Smart Watering Controller. Click here to learn more about Smart Controllers

REAL TIME FLOW MONITORING
This feature permits connection of a flow meter to recognize high or low flow conditions and react automatically to alarms. The controller learns typical flows for each zone of irrigation and then monitors performance during automatic irrigation. When incorrect flows are detected, the controller can identify the faulty station and shut it down. Used with a normally-closed Master Valve. Alarm parameters are user-programmable. Flow totals are also recorded in controller memory to report system water usage.

EASY RETRIEVE™ MEMORY
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.

ONE TOUCH MANUAL START AND ADVANCE
Allows the user to manually start/test any station by simply pressing and holding the right arrow button, and then adding a run time to the appropriate station.

PROGRAMMABLE RAIN DELAY
The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather, but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.

NON-VOLATILE MEMORY
This feature offers protection against unreliable power, retaining current time, date, and program data.

AUTOMATIC SHORT CIRCUIT PROTECTION
Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.

SEASONAL ADJUSTMENT: GLOBAL, BY PROGRAM AND SOLAR SYNC FOR ACC
This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjust to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program.
Global: Provides a seasonal adjustment value to all programs.
Monthly: Allows users to program a seasonal adjustment value for each month of the year. This works by automatically changing the programmed seasonal adjustment value on the first day of every month.
Solar Sync: The Solar Sync ET sensor implements an automatic daily adjustment based on measured local weather.

DELAY BETWEEN STATIONS FOR I-CORE AND ACC
Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements. In ACC and I-Core, Delay Between Stations may be set by individual program.

SENSOR PROGRAMMABILITY FOR ACC
Each of the ACC’s 4 Clik sensor inputs can be configured to shut down any of the 6 automatic programs in Suspended or Paused modes, offering a variety of sensor response options for different conditions.

CYCLE AND SOAK
This water-saving feature allows the operator to specify a maximum cycle time for each single station in hours, minutes, or seconds, followed by a minimum soak time, to prevent runoff from slopes or saturated soil. The operator can enter any run time, and the controller will automatically divide it into cycles to allow the water to be absorbed during the soak periods. The feature is adjustable for each individual station for unique soil and site conditions.

NO WATER WINDOW
User-specified periods of time during which the controller will not allow automatic irrigation. No Water Window can be used to comply with local watering restrictions or to prevent conflicts with pedestrian traffic. This setting does not affect manual watering options for local maintenance.

SOLAR SYNC™ DELAY
Solar Sync Delay allows the installer to specify a number of days before automatic weather adjustment begins. This allows a period of non-adjusted irrigation for grow-in or plant establishment purposes, without requiring a return visit to the site to enable the Solar Sync water-saving feature.

SIMULTANEOUS STATION GROUPS
Simultaneous Station Groups allow for groups of stations to run together within a program. This permits consolidation of large systems into fewer items to program and can be used to control system flow in high capacity installations.

TOTAL RUN TIME CALCULATOR
Simultaneous Station Groups allow for groups of stations to run together within a program. This permits consolidation of large systems into fewer items to program and can be used to control system flow in high capacity installations.
