Spray Heads
Spray heads are installed in small to medium sized areas typically less than twenty four feet. These areas maybe in the parkway, side yards, around landscapes with radial turns, and odd shaped areas. These heads perform the best a 30-psi. As with any manufactured good there are varying levels of quality and reliability.
1800-PRS Series
with Rain Bird® Flow Optimizer™ Technology

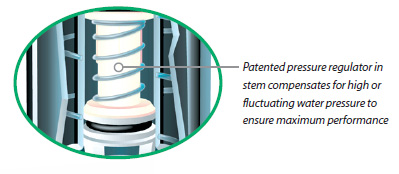

When the pressure’s on, save water and money with Rain Bird® 1800® Series Sprays featuring PRS with Flow Optimizer™ technology. These Spray Heads are ideal for use in areas with high and/or widely fluctuating water pressures. The patented PRS pressure regulator built into the stem can help you save approximately one gallon per minute per spray. It also helps to end misting and fogging caused by excessively high water pressure.
Trusted for over 30 years, 1800 Series Spray Heads have provided unmatched durability, reliability, and performance. Superior components and features make the 1800 Series Spray Head the spray head of choice for a wide variety of applications.
Features and Benefits
- PATENTED PRS pressure regulator built into the stem. No parts to be installed at the site. Saves time and money.
- Maintains constant outlet pressure at 30psi (2.1 bar). Spray nozzles perform best at 30psi. Ensures maximum nozzle performance, even with varying inlet pressures. Maintains constant pressure regardless of nozzles used.
- Unlike competitive PRS sprays, Rain Bird PRS sprays adjust to fluctuating pressure, optimizing flow and promoting a more consistent spray pattern.
- Restricts water loss by up to 70% if nozzle is removed or damaged. Saves water and money. Reduces possibility of accidents and property damage. Recommended for vandal-prone areas.
- Ensures consistent performance throughout zone if nozzle is removed or damaged. Keeps plant life covered by other spray heads properly irrigated.

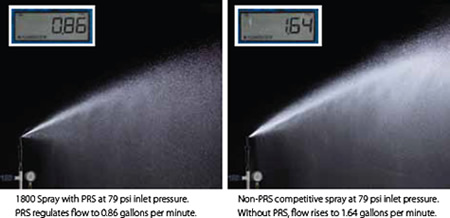

- Ends misting and fogging caused by high pressure. Stops water waste. Ensures necessary watering occurs in high pressure or wind conditions.
- Co-molded, pressure-activated, multi-functional wiper seal assures positive seal without excess “flow-by” which enables more heads to be installed on the same valve.
- All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
- Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life. Designed for use with all Rain Bird spray head nozzles.
- Designed for use with all Rain Bird plastic spray head nozzles.
“PRS” stamped on cap for easy identification and maintenance.
Five-year trade warranty.

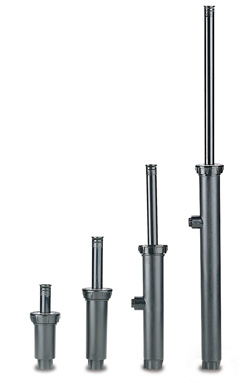

1800® Series
2″, 4″, 6″ and 12″ Pop-up Spray Head Sprinklers
Installed in parks and backyards across the globe, Rain Bird’s 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.
Chosen for its reliability, heavy-duty materials and versatility, the 1800 Series has first-rate quality built in for reliable operation and long life. Their superior components and features make them the spray heads of choice for a wide variety of applications.
Also available with Seal-A-Matic™ (SAM) in-stem check valve option and patented PRS in-stem pressure regulator option.
Features and Benefits
- Exclusive co-molded wiper seal features an encased plastic “cage” to provide unmatched resistance to grit, pressure and the environment. Additionally, the pressure-activated, multi-function seal design assures a positive seal without excess “flow-by” which enables more heads to be installed on the same valve.
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
- Strong stainless steel spring provides reliable stem retraction.
- Two piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability.
- Pre-installed orange 1800 Pop-Top™ flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
- Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
- All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
- Side and bottom inlets featured on 1806 and 1812 models.
- Five-year trade warranty.
Pro-Spray®
A rugged contractor-friendly spray for residential and commercial projects.
Hunter Pro-Spray sprinkler heads are engineered to ensure long-lasting, reliable performance in residential applications. Available in heights from shrub to 12”, Pro-Spray heads feature durable construction that is second to none, exclusive body cap design which does not leak even when loosened, and a reliable, easy to adjust two-piece ratchet. Pro-Sprays are compatible with Precision Distribution Control Adjustable Nozzles, Pro Fixed Nozzles, and MP Rotators. All models also include a user-friendly pull-ring flush cap to keep debris and clogging to a minimum. The Hunter Pro-Spray sprinkler head is compatible with all industry standard female nozzles offering a high degree of flexibility.
Features and Benefits
- Application: Residential / Commercial
- Models: Shrub, 2″, 3″, 4″, 6″, 12″
- Compatible with all female threaded nozzles
- No side inlet (NSI) version available in 6″ and 12″
- Warranty period: 5 years
Advanced Features

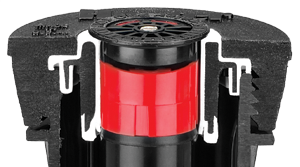

CO-MOLDED WIPER SEAL
The industry’s most rugged wiper seal is co-molded from two types of chemical and chlorine-resistant materials. This pressure-activated, multi-function wiper seal reduces flow-by, operates at low pressures, and allows more sprinkler heads to be installed on the same zone. Its innovative design prevents debris from entering the seal when the riser is retracted, reducing riser stick-ups.
INDUSTRY’S STRONGEST SPRAY BODY
The Pro-Spray line incorporates a heavy-duty ribbed body and durable cap engineered to withstand the harshest environments, including the rigors of foot traffic and the abuses of heavy machinery. In addition, the buttress thread design provides superior strength in cap-to-body gripping capacity helping the head to withstand high inlet surge pressures.

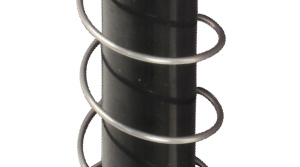

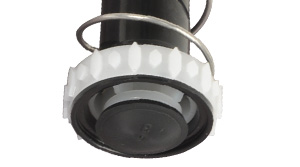

HEAVY DUTY SPRING
The industry’s strongest spring for positive retraction under any conditions.
OPTIONAL CHECK VALUE
Optional check valves eliminates drainage at heads installed on slopes, protecting landscapes from damage and erosion while reducing water waste. Choose from the convenience of factory-installed check valves or the flexibility of field installation.

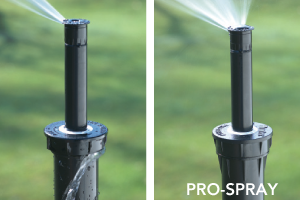

INNOVATIVE SEAL DESIGN
Pedestrian traffic, landscaping equipment, temperature changes, and cycling pressures can often cause body caps to loosen. Most spray bodies utilize an O-Ring, which breaks seal immediately after loosening. The Pro-Spray can withstand more than one full 360º turn and remain sealed at any pressure.

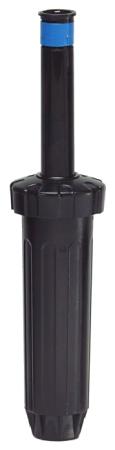

Weathermatic LX Spray
Weathermatic LX Series spray head combines a pressure-activated wiper seal and advanced formula lubricant that virtually eliminates troublesome stick ups. Add a unique tapered lip design that prevents debris from entering the body and you have a spray head with superior performance. It is rugged and reliable with a textured body style for a non-slip grip and even easier installation. Available in four pop-up heights with side inlet, pressure regulation and check valve options, the LX Series fits most landscape applications.
Features and Benefits
- Easy grip body and seal
- T-shaped flush plug
- Ratcheting shaft
- Pressure activated wiper seal
- Pop-up heights available 3″, 4″, 6″, 12″
- Operating range 15 to 70 psi
