Irrigation Valves
The electronic valve is like a sink faucet only automatic. The valve responds to commands from the controller to open water flow to a specific zone of sprinklers. When the controller sends another signal, it stops the flow of water to that zone, and the next zone opens until the watering cycle is complete.
Irritrol 2400T Valve
Your valves represent the “heart” of your irrigation system. The system relies on them to ensure water flows to your sprinklers at the scheduled times and for the scheduled duration. It also relies on them to close securely to avoid leaking, puddles and wasted water.
With so much riding on their performance, reliability is a key feature. Irritrol Systems 2400/2600 Series valves provide the level of reliable performance required in residential landscapes. Best of all, they combine this performance with outstanding convenience and flexibility.
Features and Benefits
- Threaded bonnet design
- Rugged, double-beaded SANTOPRENE® diaphragm
- Internal and external bleed (flush mode)
- Full stainless-steel metering system
- Heavy-duty, corrosion and UV-resistant PVC, glass-filled polypropylene and stainless steel construction
Irritrol 205T Valves
Buried in a box beneath your landscape, a valve is the “heart” of your irrigation system. It controls the flow of water through your system, opening and closing according to the messages it receives from your automatic controller. Though a simple task, it is critical to the health and beauty of your lawn and plants.
A favorite for residential systems for more than a decade, the 205 Series offers the features required for no-nonsense performance. This debris-tolerant valve, often selected for residential systems supplied with recycled or well water, can be serviced without removal from the system.
Features and Benefits
- Heavy-duty, UV-resistant PVC construction for durability
- Specially designed internal components for a leak-proof seal
- A metering pin system designed to resist clogging from debris
- An optional flow control handle for easy adjustment and manual shut-off
- A self-aligning bonnet and captured screws for trouble-free servicing
Rain Bird DV 100 Valves
Rain Bird’s industry-leading DV 100 Valves are backed by decades of continuous development, resulting in a level of trusted performance that’s unmatched.
- DV 100 valves are engineered to take on the toughest application challenges, even under the worst conditions, so be confident in the knowledge these valves will stand up to the diverse watering needs of your landscape.
- DV 100 Valves feature heavy-duty construction to protect against temperature extremes and high water pressure situations, ensuring hassle-free performance year after year.
Features and Benefits
- Double-filtered pilot-flow design for maximum reliability.
- Balanced-pressure diaphragm for long life.
- External bleed to manually flush system of dirt and debris during installation and system start-up.
- Internal bleed for spray-free manual operation.
- Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.
- Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
- Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
Rain Bird HV 100
Plastic Residential Irrigation Valve
High Performance. Big Savings
The Rain Bird® HV valve offers the reliable performance that professionals demand at a low price. Like all Rain Bird valves, HV Valves are built to work with any standard sprinkler timer.
Low Price
Its list price is more than 20% lower than competitors’.
Easy maintenance
4 captive, multi-drive screws allow bonnet removal in half the time or depending on the competitor, one quarter the time.
Compact design
Allows you to put more valves in a single valve box.
Rain Bird® HV Valves deliver the same fundamental quality and durability you expect from Rain Bird at a low price. HV Valves are designed with the benefit of over five decades of valve design experience and backed by a three-year trade warranty.
Features and Benefits
Reliability:

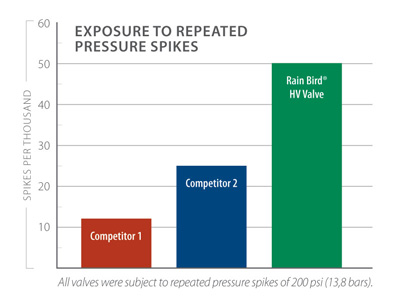

- Eccentric diaphragm for smooth closing, less water hammer
- Glass-filled polypropylene body for strength
- (slip by slip model bodies are PVC)
- Reverse flow normally closed design
- Double-filtered pilot flow for maximum reliability
- Balanced-pressure diaphragm for long life
- Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring
- Three-year trade warranty.
Versatility
- Compact design, 2.54” spin radius for tight installations
- Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream
- Available in multiple fitting types
- External bleed to manually flush system of dirt and debris during installation and system start up
- Internal bleed for spray-free manual operation
- Unique, easy-to-turn, pressure-assisted flow
- control mechanism option available
Ease of Service
- Captive multi-drive screws for ease of access
- Your choice of tools to open valve (nut driver, Phillips head screw driver, slotted head screw driver)
- Four screws for quick access to diaphragm
- Trouble-free service with few parts
- Diaphragm locating post for positive installation

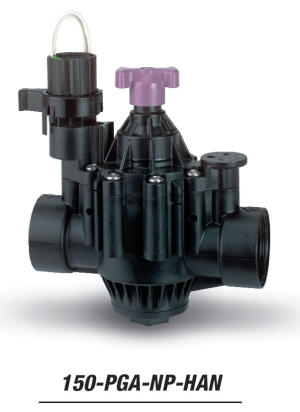

Rain Bird PGA Valve
Rain Bird’s industry-leading PGA Series Valves are backed by decades of continuous development, resulting in a level of trusted performance that’s unmatched.
- PGA Series valves are engineered to take on the toughest application challenges, even under the worst conditions, so be confident in the knowledge these valves will stand up to the diverse watering needs of your landscape.
- PGA Series Valves feature heavy-duty construction to protect against temperature extremes and high water pressure situations, ensuring hassle-free performance year after year.
Features and Benefits
- Globe and angle configuration for flexibility in design and installation.
- Rugged PVC construction for reliable operation.
- Normally closed, forward flow design.
- Double-filtered pilot flow to resist debris and clogging of solenoid ports.
- Slow closing to prevent water hammer and subsequent system damage.
- Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator to be adjusted without turning the valve on at the controller.
- One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
- Non-rising flow control handle adjusts water flow as needed.
- Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
- Accepts latching solenoid for use with Rain Bird battery-operated controllers.

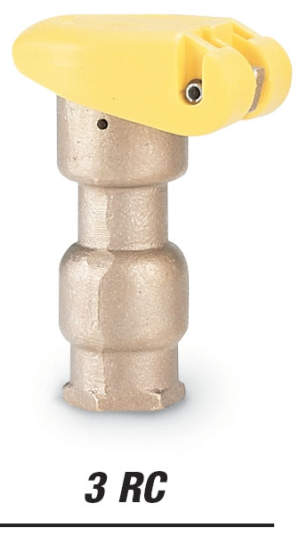

Rain Bird Quick Coupling Valve
Rain Bird’s industry-leading Quick Coupling Valves are backed by decades of continuous development, resulting in a level of trusted performance that’s unmatched.
- Quick Coupling valves are engineered to take on the toughest application challenges, even under the worst conditions, so be confident in the knowledge these valves will stand up to the diverse watering needs of your landscape.
- Quick Coupling Valves are ideal next to driveways for washing cars, next to patios for patio clean ups. Quick Coupling Valves are installed in ground and can only be turned on with the specialty key so they are completely vandal proof.
Features and Benefits
- Red brass construction for long life and rugged performance.
- Yellow thermoplastic cover for durability. Optional locking cover on models 33DLRC, 44LRC and 5LRC (use 2049 key to unlock).
- One-piece body design (models 3RC, 5RC and 7)
- Strong corrosion-resistant stainless steel spring prevents leakage.

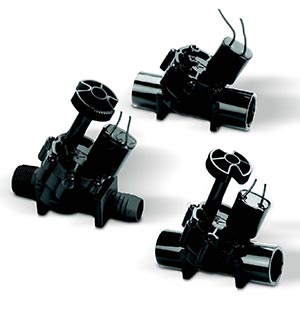

K Rain Pro Series 100
This reliable valve offers a straight through flow pattern that dramatically reduces pressure loss and reduces the risk of trapped debris that causes other brands to fail.
- Self-cleaning screen with straight flow-through pattern.
- Internal and external bleed in additional to optional flow control.
- Captured Plunger Solenoid
Features and Benefits
The valve body is constructed of UV and corrosion resistant PVC material. The valve is available in NPT, welded slip and BSP configurations. The valve is manufactured for 3 different applications:
- To accept 1” Female slip or 1 ¼” slip installation within the same unit.
- To accept 1” Female thread or 1 ¼” slip installation within the same unit.
- To accept 1” Female BSP thread or 1 ¼” slip installation within the same unit.
- Heavy Duty, Corrosion and UV Resistant PVC Construction – Increases the life of the valve.
- Combination 1” and 1 ¼” – Provides the option to increase the pipe size to the valve, increasing the flow rate.

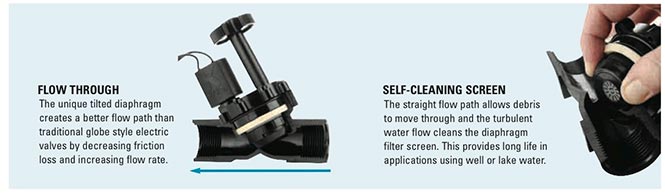

- Tilt Diaphragm/Piston Assembly – Allows for a straight flow path of the water increasing the flow rate while reducing friction loss.
- Debris Tolerant Design – Provides flexibility for use in the potable or dirty water applications.
- Manual External Bleed Screw – Provides for manual operation in system start up.
- Manual Internal Bleed-Through Solenoid – Provides for manual operation without discharging water outside the valve.

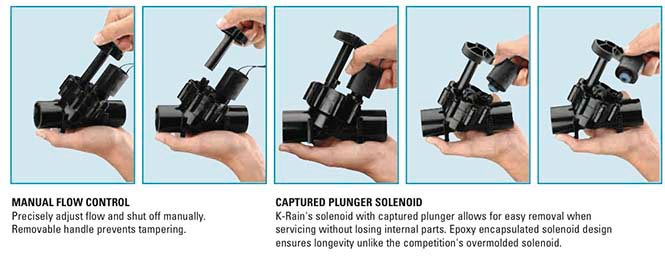

- Flow Control with Removable Handle – Allows for precise flow adjustment and manual shut-off and allows you to remove the handle to prevent tampering (except in model number 7001-NFC).
- Captured Plunger – Allows for the solenoid to be removed without losing the internal plunger.
- Self-Cleaning Metering Screen – Screen is in the turbulent flow of the water, allowing self cleaning action during operation.
